Считывание температуры с датчика DS18B20.

#include <OneWire.h>

// OneWire DS18S20, DS18B20, DS1822 Temperature Example
//
// http://www.pjrc.com/teensy/td_libs_OneWire.html
//
// The DallasTemperature library can do all this work for you!
// http://milesburton.com/Dallas_Temperature_Control_Library

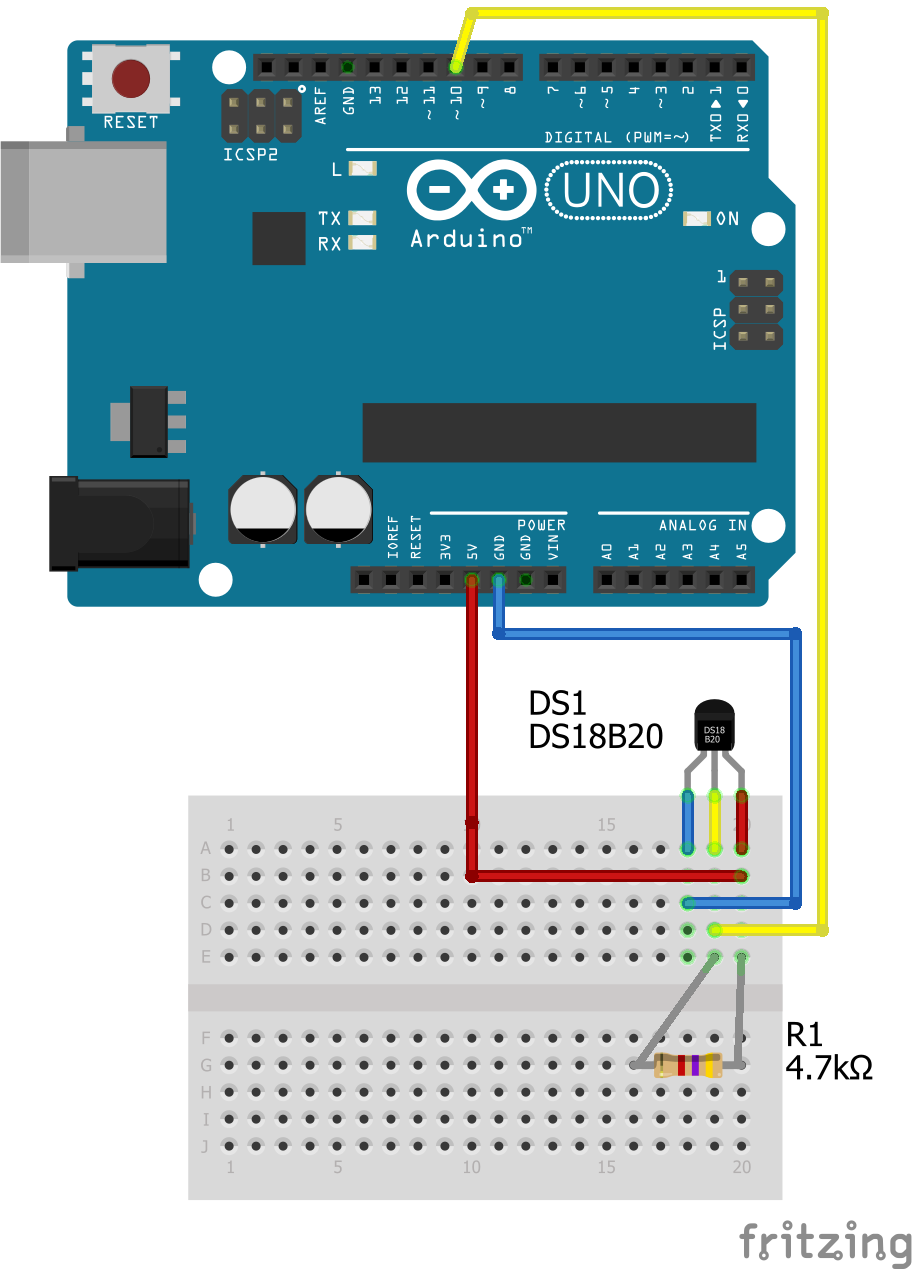

OneWire ds(10); // on pin 10 (a 4.7K resistor is necessary)

void setup(void) {
 Serial.begin(9600);
}

void loop(void) {
 float cels;
 cels=getTempC(&ds);
 Serial.print(" Temperature = "); Serial.println(cels);
 delay(1000);
}

// измерить температуру в градусах Цельсия
float getTempC(OneWire *dc)
{
 byte i;
 byte present = 0;
 byte type_s;
 byte data[12];
 byte addr[8];
 float celsius;

 dc->reset_search();
 if ( ! dc->search(addr) ) {
 Serial.println("No more addresses.");
 // Serial.println(); ds.reset_search(); delay(250);
 return -1000;
 }

 // Serial.print("ROM ="); for( i = 0; i < 8; i++) { Serial.write(' '); Serial.print(addr[i], HEX); }

 if (OneWire::crc8(addr, 7) != addr[7]) {
 Serial.println("CRC is not valid!");
 return -1000;
 }
 // Serial.println();

 // the first ROM byte indicates which chip
 switch (addr[0]) {
 case 0x10:
 // Serial.println(" Chip = DS18S20"); // or old DS1820
 type_s = 1;
 break;
 case 0x28:
 // Serial.println(" Chip = DS18B20");
 type_s = 0;
 break;
 case 0x22:
 // Serial.println(" Chip = DS1822");
 type_s = 0;
 break;
 default:
 Serial.println("Device is not a DS18x20 family device.");
 return -1000;
 }

 dc->reset();
 dc->select(addr);
 dc->write(0x44, 1); // start conversion, with parasite power on at the end

 delay(800); // maybe 750ms is enough, maybe not
 // we might do a ds.depower() here, but the reset will take care of it.

 present = dc->reset();
 dc->select(addr);
 dc->write(0xBE); // Read Scratchpad

 // Serial.print(" Data = "); Serial.print(present, HEX); Serial.print(" ");
 for ( i = 0; i < 9; i++) { // we need 9 bytes
 data[i] = dc->read();
 // Serial.print(data[i], HEX); Serial.print(" ");
 }
 // Serial.print(" CRC="); Serial.print(OneWire::crc8(data, 8), HEX); Serial.println();

 // Convert the data to actual temperature
 // because the result is a 16 bit signed integer, it should
 // be stored to an "int16_t" type, which is always 16 bits
 // even when compiled on a 32 bit processor.
 int16_t raw = (data[1] << 8) | data[0];
 if (type_s) {
 raw = raw << 3; // 9 bit resolution default
 if (data[7] == 0x10) {
 // "count remain" gives full 12 bit resolution
 raw = (raw & 0xFFF0) + 12 - data[6];
 }
 } else {
 byte cfg = (data[4] & 0x60);
 // at lower res, the low bits are undefined, so let's zero them
 if (cfg == 0x00) raw = raw & ~7; // 9 bit resolution, 93.75 ms
 else if (cfg == 0x20) raw = raw & ~3; // 10 bit res, 187.5 ms
 else if (cfg == 0x40) raw = raw & ~1; // 11 bit res, 375 ms
 //// default is 12 bit resolution, 750 ms conversion time
 }
 celsius = (float)raw / 16.0;
 // fahrenheit = celsius * 1.8 + 32.0;
 return celsius;
}
